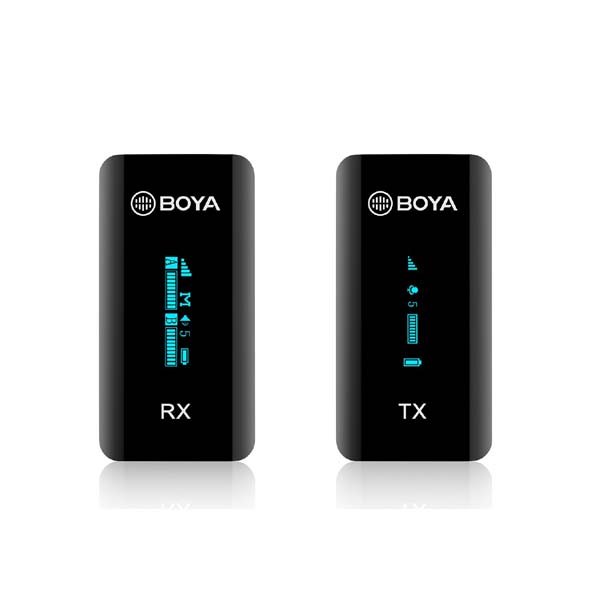

BOYA BY-XM6-S1 2.4GHz Ultra-compact Wireless Microphone System

Specification:

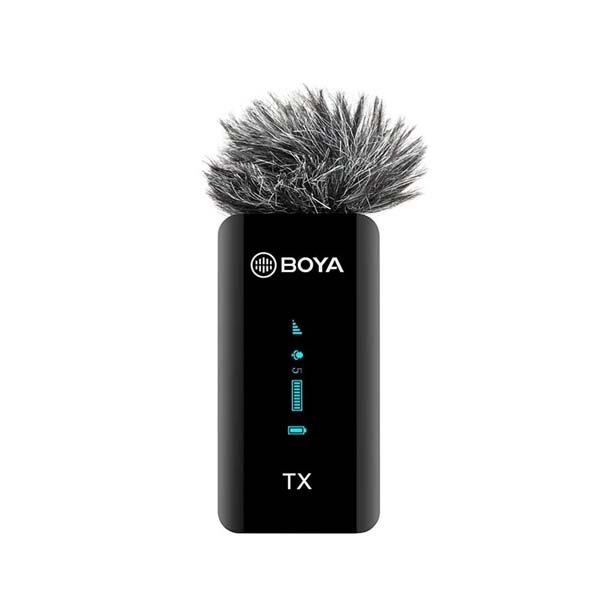

Transmitter

• Transmission Type: 2.4GHz Digital Frequency
• Modulation: GFSK
• Operating Range (without obstacle): Up to 328ft (100m)
• RF Output Power: ＜10mW
• Polar Pattern: Omnidirectional
• Frequency Response: 50Hz-18KHz
• Maximum SPL: Built-in Microphone: 120dB SPL
• Lavalier Microphone: 110dB SPL: Sensitivity
• Built-in Microphone: -39dB
• Lavalier Microphone: -39dB
• SNR: > 84dB
• Power Requirements: Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
• Built-in Battery Life: Approx. 7 hours
• Antenna: PIFA Antenna
• Audio Inputs: 3.5mm TRS MIC/LINE IN Jack or Built-in Microphone
• Weight: Approx. 32g(1.13oz)
• Dimensions: 62.1×31.6×16.5mm
• Operating Temperature: –10°C to 50°C
• Storage Temperature: –20°C to +55°C

Receiver

• Transmission Type: 2.4GHz Digital Frequency
• Modulation: GFSK
• Operating Range (without obstacle): Up to 328ft (100m)
• Audio Output Connector: 3.5mm Headphone Jack, 3.5mm TRS Output Jack
• Audio Output Level: –60 dBV to -20dBV
• Power Requirements: Built-in Li-ion Battery or USB-C DC 5V or Charging Contact
• Built-in Battery Life: Approx. 6.5 hours
• Antenna: PIFA Antenna
• Weight: Approx. 32g(1.13oz)
• Dimensions: 62.1×31.6×16.5mm
• Operating Temperature: –10°C to 50°C
• Storage Temperature: –20°C to +55°C
